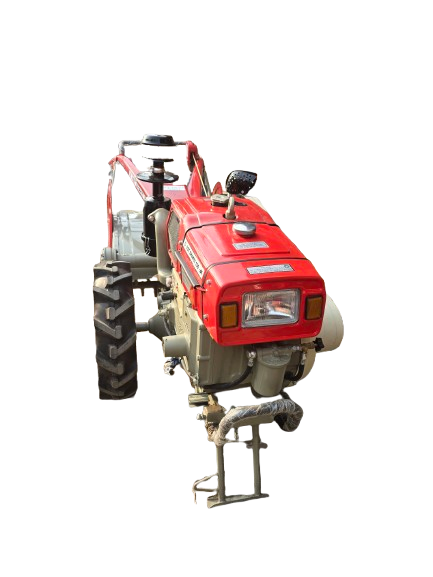

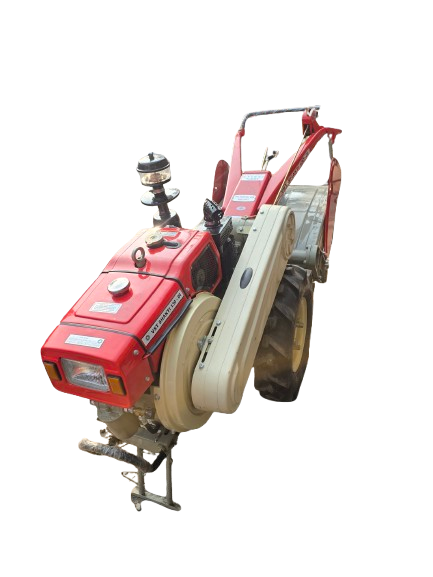

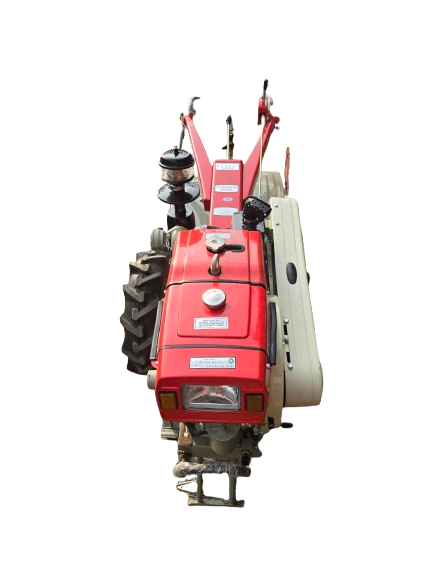

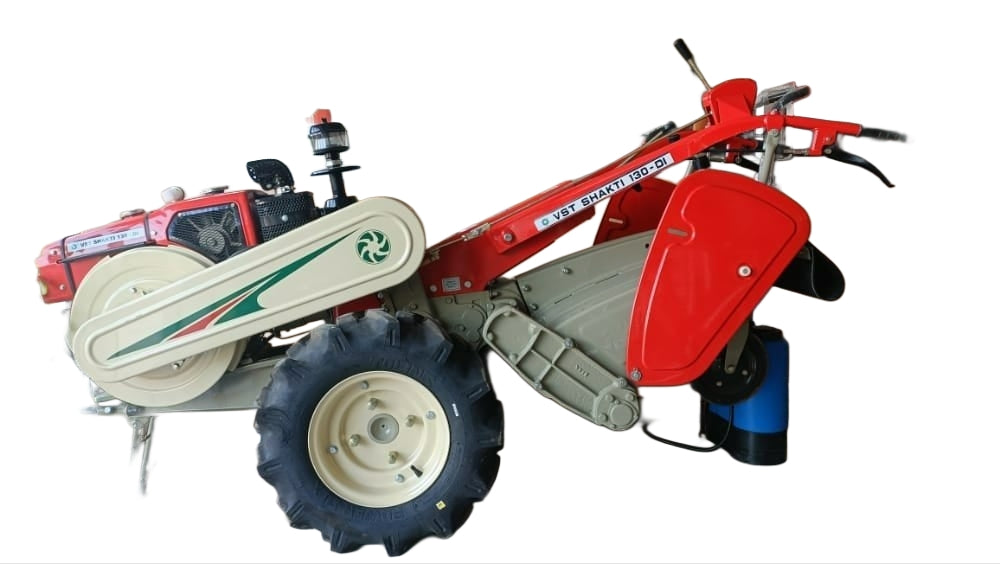

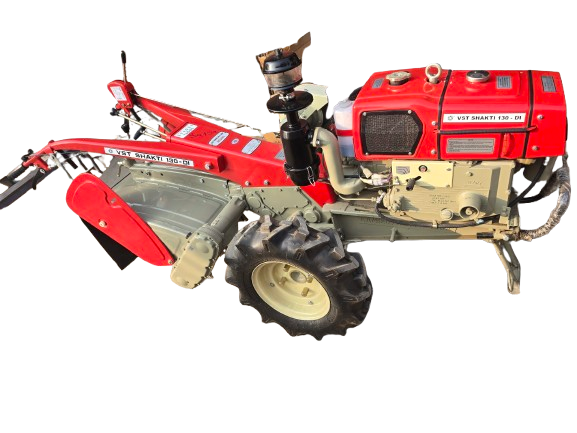

VST Shakti 130 DI Power Tiller

MODEL ENGINE VST 130 DI

Type Horizontal 4 stroke single cylinder water cooled diesel engine OHV

Combustion Chamber Direct Injection (DI)

Max. Torque 4.2 kg-m/1600 rpm

Max. HP as per IS 13539 1996 13.0 HP@2400 rpm

SFC (Specific Fuel Cons) 190g/hp/hr

Governor System Mechanical, centrifugal type

Cooling System Condenser type thermo siphon cooling system

Starting System Lighting System Hand cranking

Std. Pulley (DIA) 12 Volts/35 Watts

Dry Weight 100mm/optional 120mm

125 kgs

LUBRICATING SYSTEM Oil Sump Capacity 2.8 itrs

Type of Lubricating System Force feed type Trochoid pump

Air Cleaner Multistage, oil bath type with cyclonic per-cleaner

PERFORMANCE Tilling Width 600 mm (maximum)

No. of Tynes 150 mm (maximum)

Tilling Depth Plough Depth 220 mm (maximum
